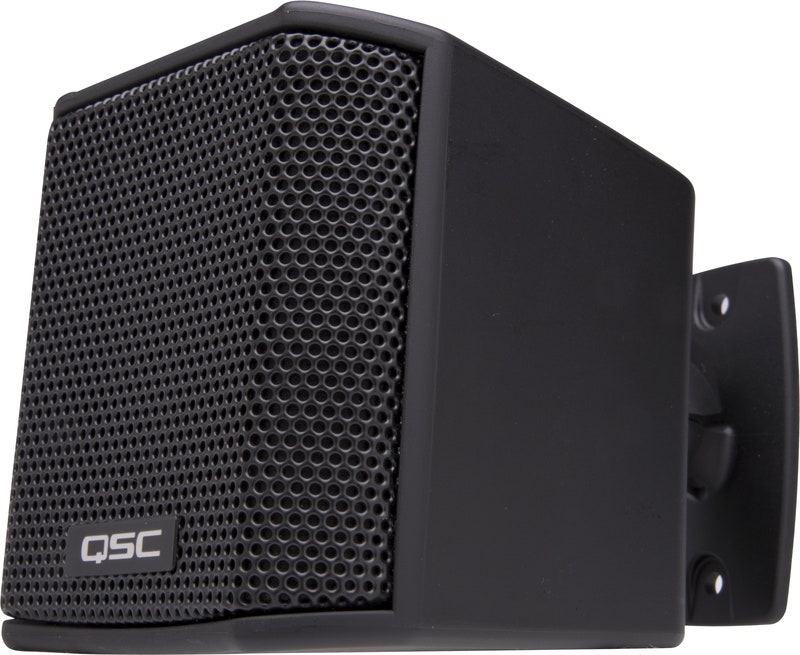

QSC AD-S.SAT Black

Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications Priced individually but must be purchased in pairs.

• Refined depth and clarity even at low volume settings
• Mix-and-match capable, any subwoofer with any satellite in the AD Series SUB/SAT line
• Inverted aluminum dome dust cap
• Rated at 16 Ω
• Locking 2-pole Euroblock connectors
• Removable logo
• X-Mount™ Mini mounting hardware provides repeatable angles without drift or sag
• Intrinsic Correction™ voicings available via MP-M Series mixers and the Q-SYS Platform, including CXD-Q Series amplifiers
  Specifications:

• HF transducer: 2.75 in (70 mm) weather treated paper cone woofer
• Effective frequency range: 150 Hz – 20 kHz
• Rated noise power / voltage: 25 W / 20 V (rms)
• Sensitivity [dB] (rated @1 W, 1 m): 82
• Coverage (-6 dB) [°]: 170° Conical
• Maximum SPL [dB] (rated, 1 m (continuous / peak)): 90 / 96
• Recommended amplifier: 25 W (with 1st order high-pass filter at 200 Hz)
• Transformer taps / impedance: Bypass: 16 Ω
• Connector: 2-pole Euroblock
• Enclosure material: ABS
• Grill material: Powder coated steel
• Ingress protection: IP-34
• Operating environment: Designed for indoor use
• Operating temperature range: -20 to 50° C
• Net weight: 433 g
• Product dimensions including wall bracket (H x W x D): 92.5 x 89 x 136 mm
• Included accessories: X-Mount Mini , Euroblock connector (pair packed)
