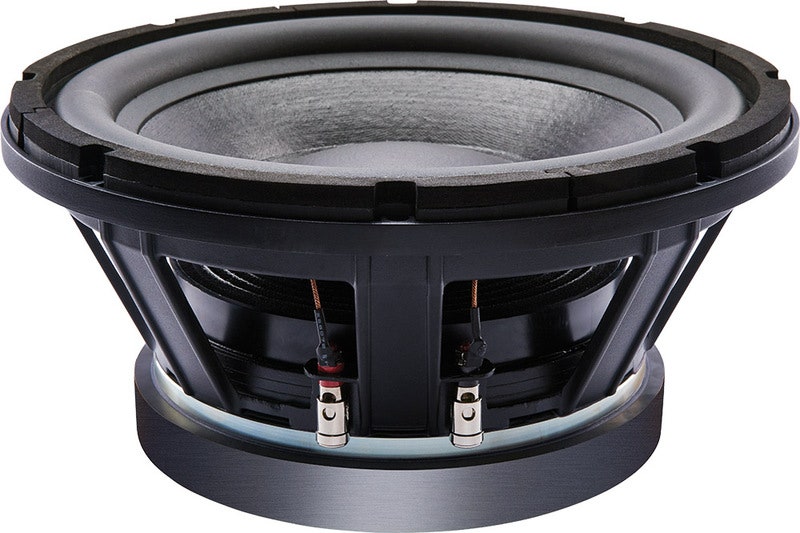

Celestion FTR12-4080DL 8R

Half-roll elastomer surround
Long excursion: 11.25mm mathematical Xmax
Glass loaded paper cone with weather-resistant impregnation
Optimised double suspension
Airflow vented magnet assembly for dynamic heat dispersion

General Specifications

Nominal Diameter 305mm/12in

Power Rating 700W

Continuous Power Rating 1400W

Sensitivity 88dbB

Rated Impedance 8Ω

Frequency Range 20Hz-300Hz

Voice coil diameter (mm) 100mm

Voice coil diameter (in) 4in

Chassis Type Cast Aluminium

Magnet Type Ferrite

Magnet Weight 3.6kg/126oz

Voice coil material Round copper

Former Material Aluminium

Cone material Glass loaded paper (weather-resistant)

Surround Material Elastomer

Suspension Double xmax 11.25mm/0.44in

Gap Depth 9.5mm/0.37in

Voice coil winding width 32mm/1.26in

Mounting Information

Mounting slot dimensions 10mm x 7mm/0.39in x 0.27in

Mounting slot PCD 291mm-301mm/11.7in-11.9in

Number of mounting slots 8

Overall Depth 169mm

Overall Diameter (mm) 313mm

Cut-out diameter 282mm

Unit Weight 10.2kg
