EAW RSX218

Designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators.

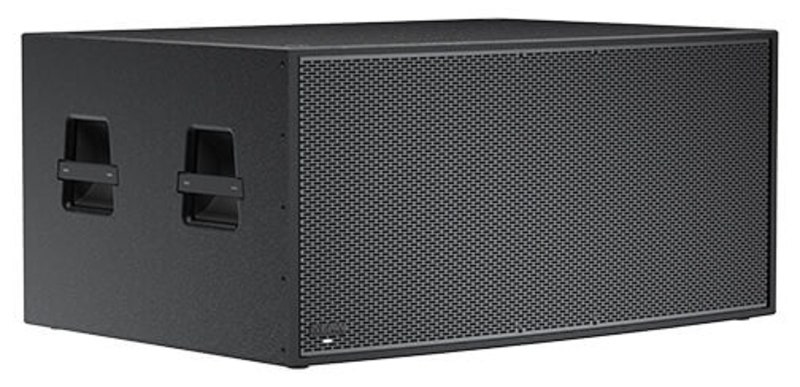

The powerful RSX218 dual 18” subwoofer is ideal for production applications, offering push-button cardioid operation for added sonic control. The RSX218 features onboard electronics (1400W maximum) and ultra-wide ports that drastically reduce low-frequency turbulence. EAWmosaic™ app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application.

With the proven sonic performanceof EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

• Operating Range: 27 Hz to 125 Hz
• Nominal Beamwidth:  Horizontal 360°, Vertical 360°
• Calculated Axial Output Limit (whole space SPL): Average: 129 dB (whole space), 135 dB (half space),  Peak: 135 dB (whole space), 141 dB (half space)
• Input: Type: Electronically balanced
• Max Input Level: 21dBu
• Impedance: 20 kOhm (balanced)
• Input Wiring: XLRF, Pin 1 chassis, pin 2 +, pin 3 – separate loop-thru XLRM (for analog signal only)
• Input Selection: Analog, Dante
• Amplifiers & Processing (LF): Type Modified Class D
• Maximum Output: 1400W
• Driver Protection: Integral DSP limiting
• AC Mains (nominal: Connector
• Neutrik PowerCon®
• Input: 100 V to 240 V
• Frequency: 50 Hz to 60 Hz
• PowerConsumption: Idle – 22W
• Peak Draw – 230 W
• Controls/Communication
• Connections: 2x Neutrik® etherCON™, RJ-45
• Protocols: Ethernet/Dante
• Software: EAWmosaic™ (available on the App Store)
• Indicators: LCD Screen on amplifier panel for UI, Logo LED (User-definable behavior)
• User Controls: Push-button Rotary Encoder
• Weight: 69.4 kg
• Dimensions: 523x1118x791 mm
